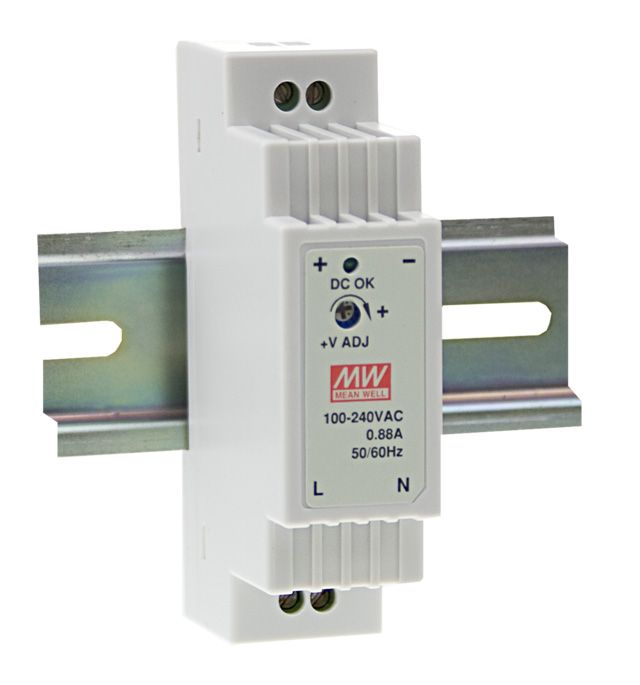

DR-15-24 Power supply with universal input - 24V / 0,63A output

€16.17
In stock
SKU
DR-15-24

Power supply with nominal power of 15W that can provide a maximum current of 0,63A on load at 24Vdc.

General description

Power supply with nominal power of 15W that can provide a maximum current of 0,63A on load at 24Vdc.
The universal input range with 85÷264Vac and 120÷370Vdc allows the use of the power supply in different conditions of the electrical line.
Protected against overload, short circuit and output overvoltage.
Small size and DIN rail mounting, ideal power supply for the entire series of compact PLCs and I/O modules.

Main features

  • Universal Ac input/Full range
  • Protections: Short circuit/ Overload / Over voltage
  • Cooling by air convection
  • Can be installed on DIN rail
  • Isolation class II
  • LED indicator for power on
  • No load power consumption <0.5W
  • 100% full load burn-in test

Manuals and guides

Datasheet DR-15-24Datasheet DR-15-24

More Information
Output Current - Ch 1 0.63 A
Manufacturer Mean Well
Input Type 1-Phase / Single Phase
Output Power 15 W
Input Voltage 85 VAC to 264 VAC, 120 VDC to 370 VDC
Number of Outputs 1 Output
Output Voltage - Ch 1 24V
Height 93 mm
Width 25 mm
Length 56 mm
Mounting on EN-50022 DIN rail
Working Temperature from -20 to +60 °C
Working Humidity from 20 to 90% (non condensing)
Storage temperature from -40 to +85 °C
Weight 98 g
